Acudor Fire Rated Access Door Insulated for Walls & Ceilings FW-5050

Acudor  |  SKU: 08APFW500808  |  Barcode: 60849291
$21300 CAD
Shipping calculated at checkout.
Size

Members earn 426 CSR Points when they buy this item. Sign up or log in.

Pickup available at CSR Building Supplies (Barrie, ON)

Usually ready in 24 hours

Application

  • For walls and ceilings
  • This door should be used in walls when temperature rise or heat transmission is a factor.

Product Features

  • Insulated door panel
  • Concealed hinge
  • Self-closing
  • Self latching
  • Inside latch release

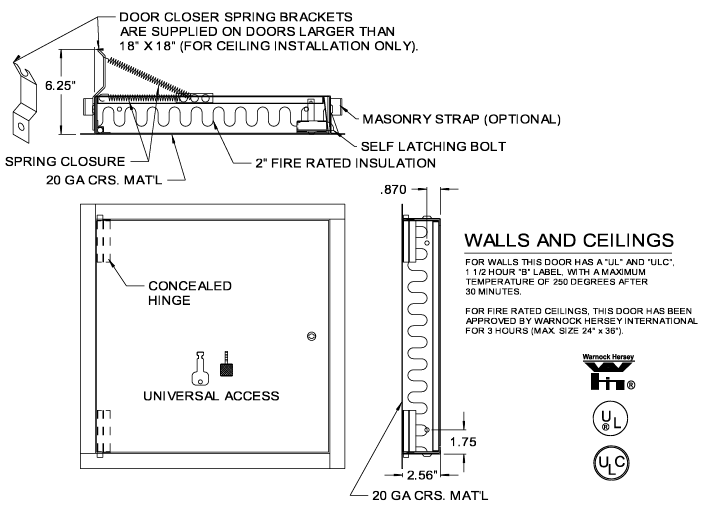

FW-5050 Access Door Specifications

  • Material: Steel or Stainless Steel
  • Door: 20 gauge, filled with 2" thick fire rated insulation
  • Mounting Frame: 16 gauge, flange to be 1" wide
  • Hinge: Concealed
  • Fire Rating (Walls): UL — 1-1/2 hour "B" label. ULC — 2 hour "B" label. Max size: 36 x 48. (Ceilings): Warnock Hersey International 3 hour rated in a non-combustible ceiling. 1 hour rated in a combustible ceiling. Max size: 24 x 36
  • Standard Latch: Universal self-latching bolt, operated by either a knurled knob or flush key. When master keying is required, doors can be prepared for mortise cylinder locks.
  • Finish:  Steel: 5 stage iron phosphate preparation with prime coat of white baked-on enamel. Stainless Steel: Type 304 - #4 satin polish
